Re: Hachette Meccano Crane

Postby jdebord » Wed Jun 17, 2020 3:44 pm

Issue 79 is available.

It completes the lower front part of the 4-th boom element.


In the magazine :

- History of Meccano : The gold / hatched blue period

- History of Meccano parts : Low voltage electric motors (part 2)

- Other models
jdebord
Colour Sergeant
Colour Sergeant

Posts: 115
Joined: Thu Apr 12, 2018 8:08 am
Karma: 6

Re: Hachette Meccano Crane

Postby jdebord » Thu Jun 25, 2020 6:55 am

Issue 80 is available.

It completes the rear part of the 4-th boom element.


In the magazine :

- History of Meccano supermodels : Transporter bridges (part 3)

- Other construction sets : Worldwide tour (part 1)

- Other models
jdebord
Colour Sergeant
Colour Sergeant

Posts: 115
Joined: Thu Apr 12, 2018 8:08 am
Karma: 6

Re: Hachette Meccano Crane

Postby jdebord » Wed Jul 01, 2020 2:59 pm

Issue 81 is available.

It completes the 4-th boom element :



In the magazine :

- History of Meccano : Zinc period - Innovations made in England

- History of Meccano parts : Atypical angle girders

- Other models
jdebord
Colour Sergeant
Colour Sergeant

Posts: 115
Joined: Thu Apr 12, 2018 8:08 am
Karma: 6

Re: Hachette Meccano Crane

Postby jdebord » Thu Jul 09, 2020 4:00 pm

Issue 82 is available.

It completes the 4-th boom element:


Now I have mounted the 4 boom segments of the crane. Here are some pictures:



Here you can see the pairs of angle brackets which will be connected later on each side of the boom:


In the magazine :

- History of Meccano models : The Pascaline (model of Blaise Pascal's calculator)

- Other models
jdebord
Colour Sergeant
Colour Sergeant

Posts: 115
Joined: Thu Apr 12, 2018 8:08 am
Karma: 6

Re: Hachette Meccano Crane

Postby royjess » Fri Jul 10, 2020 8:42 am

This is looking awesome
Completed Builds Hachette - The Black Pearl
Completed Builds DeAgostini - Build the Millennium Falcon

Always thinking outside the box....!
User avatar
royjess
Brigadier
Brigadier

Posts: 5294
Joined: Fri Mar 14, 2014 3:29 pm
Location: Watton, Norfolk
Karma: 260

Re: Hachette Meccano Crane

Postby jdebord » Fri Jul 17, 2020 3:08 pm

Issue 83 is available.

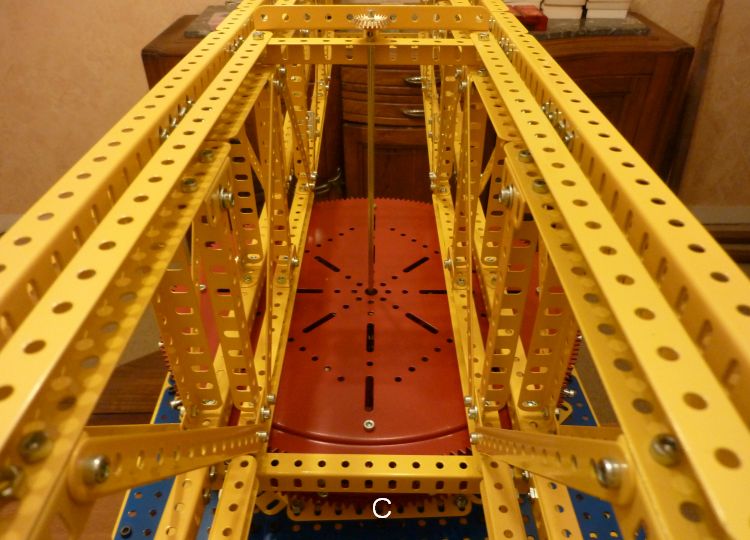

It adds several angle girders (A, B, C) between the 2 sides of the boom.

One of the angle girders B serves as bearing for the vertical rod which will transfer the movement to the bogies.
I have added the gear by anticipation !




In addition, this issue completes the front part of the boom:


In the magazine :

- The end of the zinc period and a new toy: RIVITON

- Other models
jdebord
Colour Sergeant
Colour Sergeant

Posts: 115
Joined: Thu Apr 12, 2018 8:08 am
Karma: 6

Re: Hachette Meccano Crane

Postby jdebord » Fri Jul 24, 2020 2:38 pm

Issue 84 is available.

It adds some (14) 3-hole flat girders connecting the two boom segments on one side of the crane.

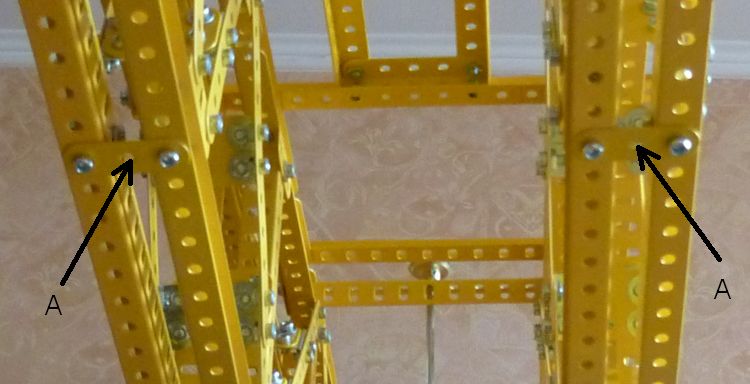

4 flat girders are placed between the vertical angle girders (A). The other 10 connect the perforated strips (B)


In the magazine :

- History of Meccano : Return of the red-green period in England

- History of Meccano parts : the one-inch pulley (part 5 : Tyres and rings)

- Other models
jdebord
Colour Sergeant
Colour Sergeant

Posts: 115
Joined: Thu Apr 12, 2018 8:08 am
Karma: 6

Re: Hachette Meccano Crane

Postby jdebord » Sun Aug 02, 2020 3:51 pm

Issue 85 is available.

It fits 14 additional 3-hole flat girders, on the same side of the boom but in its middle and rear parts.

The bracing of this boom side is now complete.

It's likely that issues 86-87 will do the same for the other side.


In the magazine :

- History of Meccano : Return of the red-green period in England (part 2)

- American electric motors

- Other models
jdebord
Colour Sergeant
Colour Sergeant

Posts: 115
Joined: Thu Apr 12, 2018 8:08 am
Karma: 6
