Re: Hachette Meccano Crane

Postby jdebord » Sat Jul 06, 2019 8:21 am

I too never had a Meccano steam engine, only electrical motors.

Some of them are proposed on ebay:

https://www.ebay.co.uk/bhp/meccano-steam-engine
jdebord
Sergeant
Sergeant

Posts: 74
Joined: Thu Apr 12, 2018 8:08 am
Karma: 4

Re: Hachette Meccano Crane

Postby jdebord » Sat Jul 13, 2019 9:31 am

Issue 45 is available.

With this issue we begin to build the front part of the boom element.

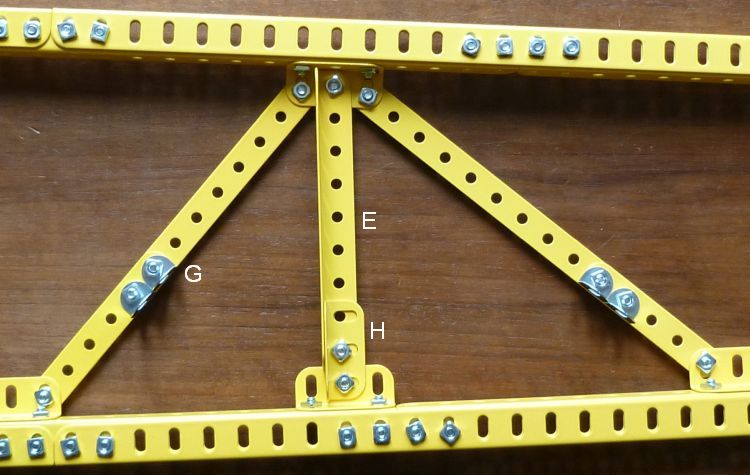

The structure from issue 42 (A) is connected to the main part (B) using a 7-hole strip at the front extremity (C)


The bracing is made with several perforated strips (D), a 9-hole angle girder (E) and several 3-hole angle girders (F)


Some of the strips bear angle brackets (G) ; also note the special 3-hole angle girder (H) which extends the 9-hole angle girder (E)


In the magazine :

- History of Meccano models : Mechanical clocks

- History of Meccano : The Meccano boy

- Other models
jdebord
Sergeant
Sergeant

Posts: 74
Joined: Thu Apr 12, 2018 8:08 am
Karma: 4

Re: Hachette Meccano Crane

Postby jdebord » Fri Jul 19, 2019 2:27 pm

Issue 46 is available.

It terminates the build of the boom element:


Here is a picture of the complete element. The door gives the scale.


It is 135 holes long (= 67.5" ~ 172 cm)

In the magazine :

- History of Meccano models: the electrical clock (1936)

- History of Meccano parts: spanners

- Other models
jdebord
Sergeant
Sergeant

Posts: 74
Joined: Thu Apr 12, 2018 8:08 am
Karma: 4

Re: Hachette Meccano Crane

Postby chill » Fri Jul 19, 2019 2:29 pm

Now thats big :shock:
Who cares who wins
User avatar
chill
Major General
Major General

Posts: 7782
Joined: Thu Aug 27, 2009 8:12 am
Location: Rochdale
Karma: 164

Re: Hachette Meccano Crane

Postby Mark » Fri Jul 19, 2019 4:00 pm

You're gonna need a bigger man cave!! It's huge!!!
Cheers
Mark

If you nose runs and your feet smell, you're upside down !
User avatar
Mark
Site Admin
Site Admin

Posts: 15860
Joined: Wed Aug 26, 2009 10:44 pm
Karma: 407

Re: Hachette Meccano Crane

Postby jdebord » Sat Jul 27, 2019 8:08 am

Issue 47 is available.

It begins another boom element which will be connected to the previous one to form one side of the boom.

Here I have made the connection with long bolts and plastic spacers (the black parts) from my own Meccano stock ; the partwork model will use a different mechanism.


In the magazine :

- History of Meccano : the plane construction kits of the 1930's

- History of Meccano parts: flat girders

- Other models
jdebord
Sergeant
Sergeant

Posts: 74
Joined: Thu Apr 12, 2018 8:08 am
Karma: 4

Re: Hachette Meccano Crane

Postby jdebord » Sat Aug 03, 2019 7:58 am

Issue 48 is available.

It completes the second half of the boom side.


In the magazine :

- History of Meccano : Military toys

- History of Meccano models : Meccano looms

- Other models
jdebord
Sergeant
Sergeant

Posts: 74
Joined: Thu Apr 12, 2018 8:08 am
Karma: 4

Re: Hachette Meccano Crane

Postby jdebord » Thu Aug 08, 2019 10:00 am

Issue 49 is available.

It keeps elongating the second half of the boom element.


In the magazine :

- History of Meccano : The blue (crosshatching) and gold period

- History of Meccano parts : the 1/2" pulley (part 2)

- Other models
jdebord
Sergeant
Sergeant

Posts: 74
Joined: Thu Apr 12, 2018 8:08 am
Karma: 4

Re: Hachette Meccano Crane

Postby casper » Thu Aug 08, 2019 10:58 am

Such a great kit and wow its massive :o a pleasure to watch
My Honda MP4/4 Build Diary
viewtopic.php?f=80&t=5208
User avatar
casper
General
General

Posts: 12625
Joined: Tue Jun 07, 2011 6:23 pm
Location: North Wales
Karma: 358

Re: Hachette Meccano Crane

Postby jdebord » Thu Aug 15, 2019 2:23 pm

Issue 50 is available.

Still elongating the second half of the boom element.


In the magazine :

- History of Meccano models : Electric models

- History of Meccano parts : the Magic motor (clockwork motor)

- Other models
jdebord
Sergeant
Sergeant

Posts: 74
Joined: Thu Apr 12, 2018 8:08 am
Karma: 4
