Postby Graham » Sat Jan 31, 2015 7:55 pm

Well, with 15 issues delivered, I've been itching to get started on the U96 and decided to start this afternoon having seen Mustang's great progress.

So here we go. Parts 1 & 2 prepped and ready to go.


Dry fitted and all the parts and they fit perfectly.


Glue out and we're off...!


Will be up to more tonight and tomorrow. Really looking forward to this build.
No trees were harmed in the transmission of this message - but a lot of electrons got aggitated.
User avatar
Graham
Sergeant Major
Sergeant Major

Posts: 204
Joined: Thu Jun 07, 2012 3:36 pm
Location: Sarisbury Green, Hampshire
Karma: 29

Re: Graham's U96 Build

Postby builder » Sat Jan 31, 2015 9:25 pm

It’s a long way to issue 140 Graham, you need a K for the that, will do that after this post.
Good luck with the build of this beautiful partwork model.
Building the DKM Bismarck and HMS Hood.
User avatar
builder
Second Lieutenant
Second Lieutenant

Posts: 666
Joined: Fri Mar 23, 2012 11:00 pm
Location: The Netherlands
Karma: 26

Re: Graham's U96 Build

Postby Graham » Sun Feb 01, 2015 8:52 pm

Been working on issues 1 - 7, and it all seems to be going very well. All the parts fitted beautifully, and using the bits from issue 8, everything aligned almost perfectly. I haven't joined parts 3 & 4 together yet, as it made handling the beast a lot easier - that will be the next stage...





:dance:
No trees were harmed in the transmission of this message - but a lot of electrons got aggitated.
User avatar
Graham
Sergeant Major
Sergeant Major

Posts: 204
Joined: Thu Jun 07, 2012 3:36 pm
Location: Sarisbury Green, Hampshire
Karma: 29

Re: Graham's U96 Build

Postby Mark » Tue Feb 10, 2015 1:07 pm

Nice start Graham. Nice to hear that everything fits together well. That model is massive !!
Have a K for starting a build diary :D
Cheers
Mark

If you nose runs and your feet smell, you're upside down !
User avatar
Mark
Site Admin
Site Admin

Posts: 16002
Joined: Wed Aug 26, 2009 10:44 pm
Karma: 411

Re: Graham's U96 Build

Postby Graham » Sat Feb 14, 2015 3:09 pm

Thanks Mark!

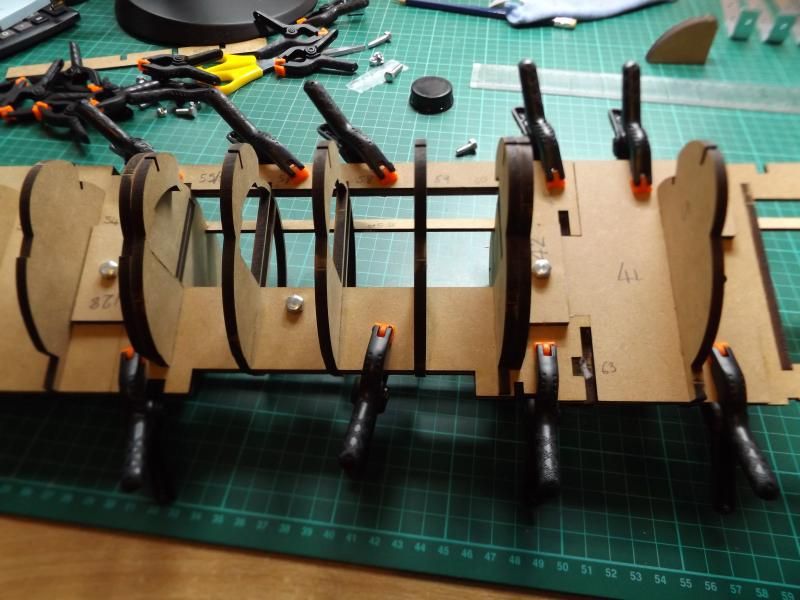

Parts 3 & 4 have now been glued together and the support beams added. She it one heck of a long model!!



Now onto Parts 9-15. All bits prepped.

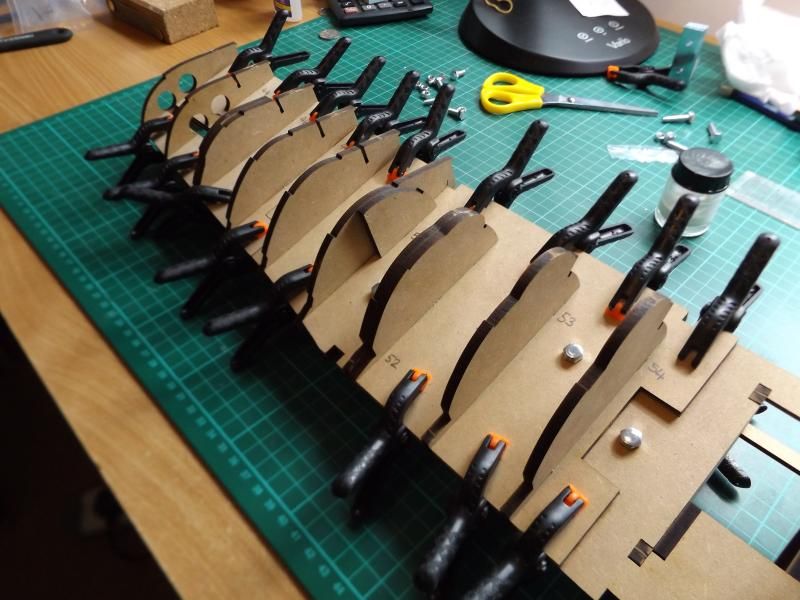

I'm straying from the destructions a bit, and am putting the ribs onto each keel section before gluing/bolting them to the starboard side.


Et voila!


And that's as far as I can go until I get issues 16-19 with all the final ribs for the aft section, and nuts and bolts. Checked my Hatchette account and they've been dispatched, so should be with me early next week.
No trees were harmed in the transmission of this message - but a lot of electrons got aggitated.
User avatar
Graham
Sergeant Major
Sergeant Major

Posts: 204
Joined: Thu Jun 07, 2012 3:36 pm
Location: Sarisbury Green, Hampshire
Karma: 29

Re: Graham's U96 Build

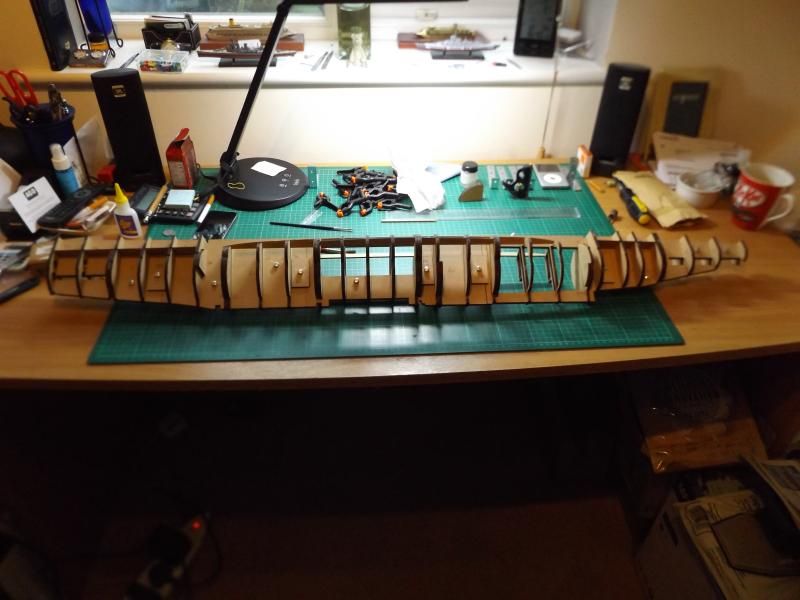

Postby Graham » Sat Feb 28, 2015 7:41 pm

Been working on issues 16 - 19 today, and here's the progress...

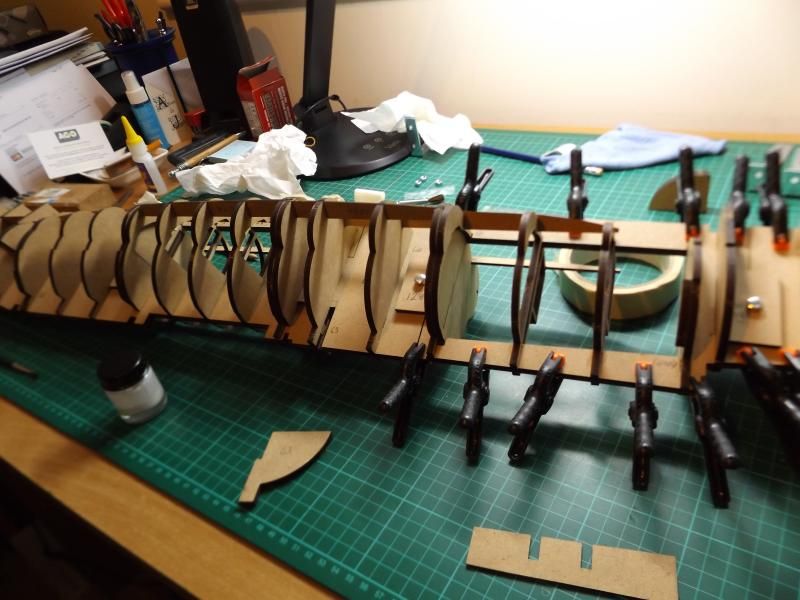

Starting to glue the left hand structure to the right hand in sectors.

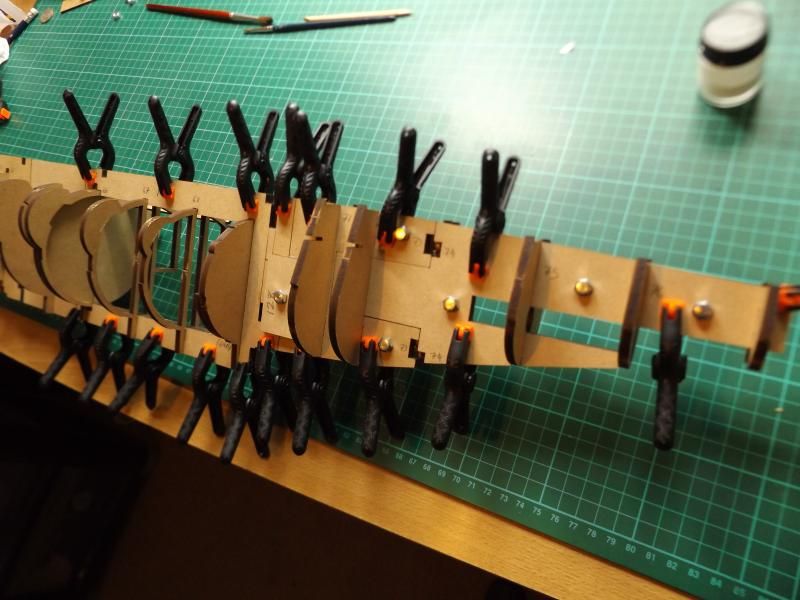

Then added the final frames that overlapped the joints.

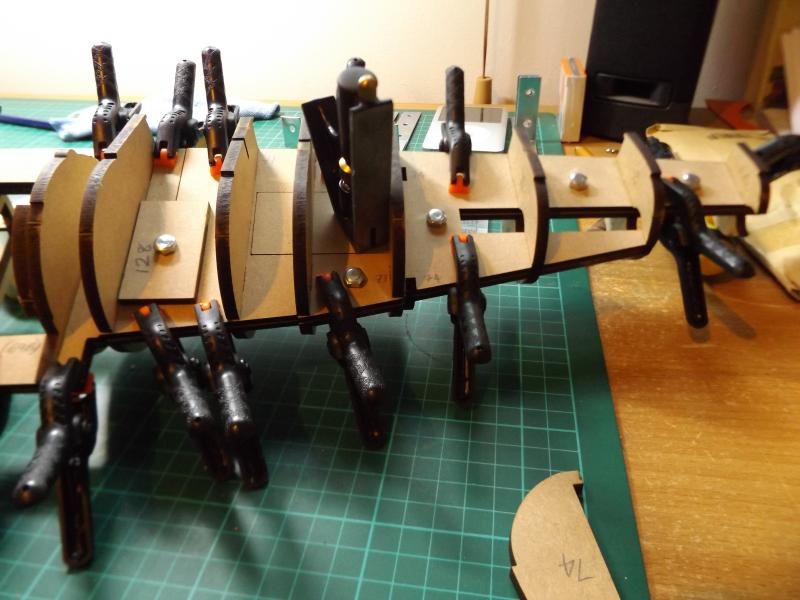

And the longitudinal supports.


All completed.

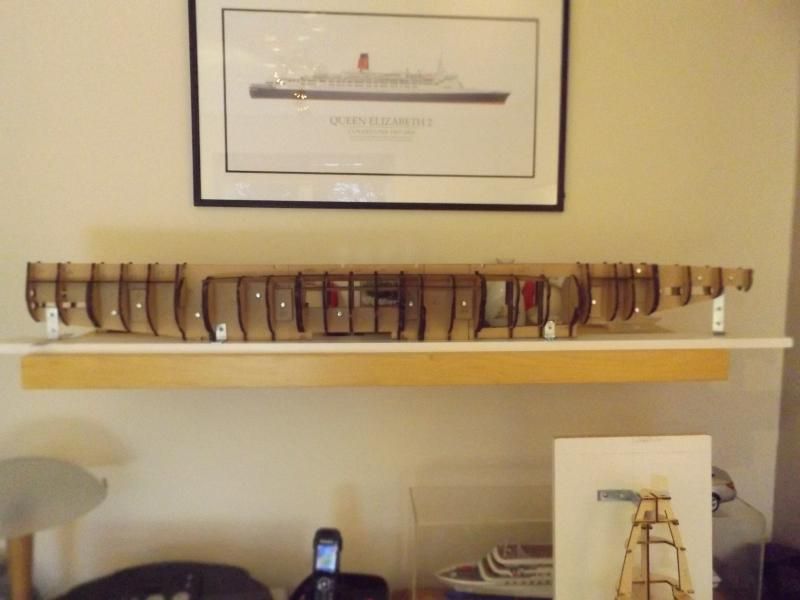

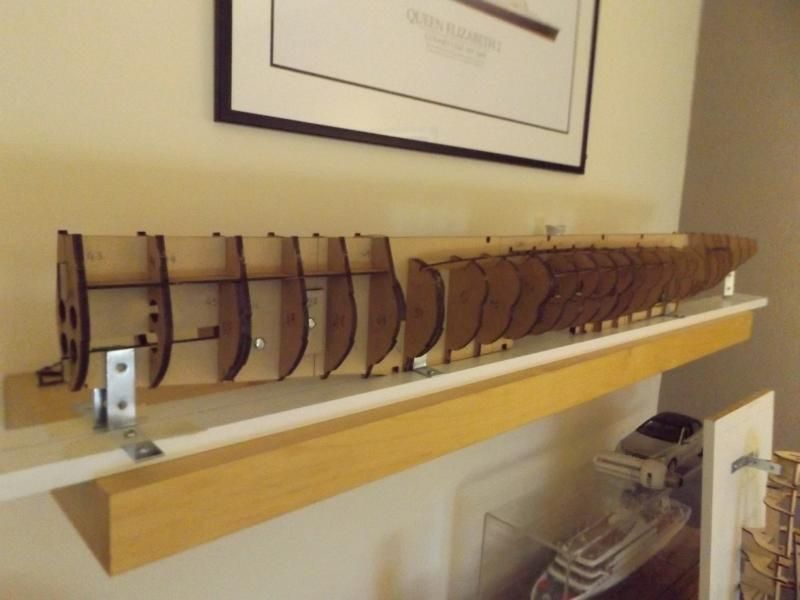

Now to set her aside on the buildboard with supports. (Have added an extra support midships now).



(New camera - so need a bit more playing around with it to get the images more in focus - must have used the wrong setting).

Now to wait 4 weeks for issues 20 - 23.
No trees were harmed in the transmission of this message - but a lot of electrons got aggitated.
