Re: Red 5 Standing By

PostPosted: Fri Nov 22, 2019 12:42 am
by Narayan
Stage 12: Upper Starboard Engine


The alluvial damper and hydraulic adjusters are added to stage 11.

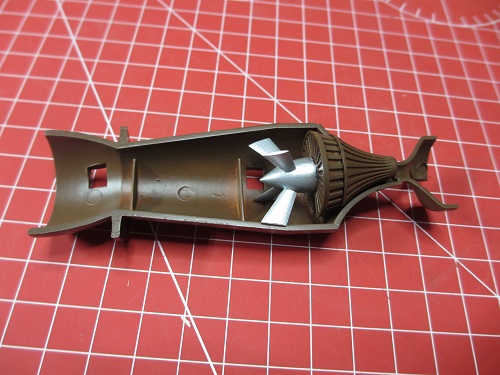

The remaining parts are put together separate of these. Starting with turbo generator body and cone.

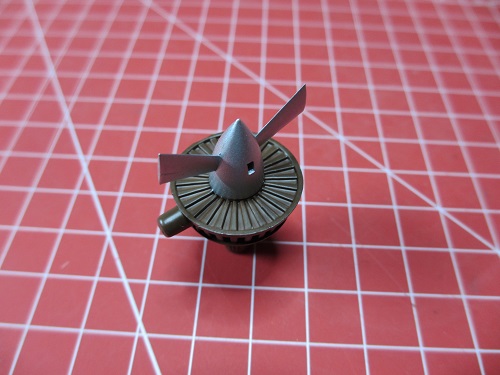

The turbo impeller is attached followed by 2 individual blades.

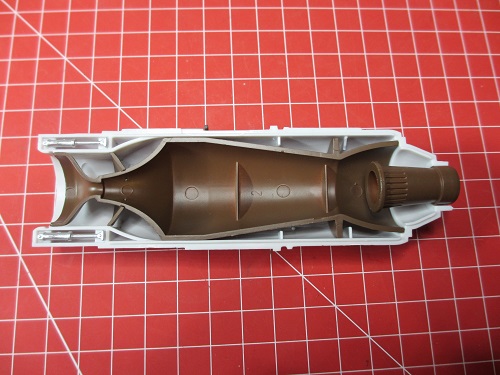

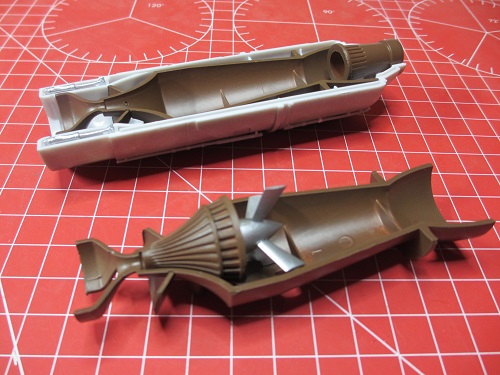

This assembly is then added into the fission chamber.


On the outside of the fission chamber place a collar and that finishes the stage.


Graham

Re: Red 5 Standing By

PostPosted: Fri Nov 22, 2019 11:33 am
by Narayan
Stage 13: Upper Starboard Engine


Now I am going to finish the casing. Starting off with the casing detail.



Thruster diffuser is added to the lens then encased in the nozzle.



The LED is attached to the reflector and carefully bent back to allow it to fit to the previously assembly. This is then fit to the engine casing.




The engine casing is closed up and held together by the nozzle and a locking collar. This is all a very tight fit and goes together well.


Finally I can test the diffuser.


Graham

Re: Red 5 Standing By

PostPosted: Fri Nov 22, 2019 10:13 pm
by Narayan
Stage 14: Upper Starboard Engine Mount


The inner wing frame and engine mount brace are placed in the previously built wing. They are attached with several screws of different sizes so they are very secure.




The sub light assembly is fitted on the wing and secured with a screw. The LED is threaded through and routed around the edge of the wing.


There is a longer LED lead that is secured toward the end the wing and back to meet the first LED wire.


There is now a cover for the wing root. This is attached with 3 screws that are then covered with plugs.



The wing assembly now looks like this:



Graham

Re: Red 5 Standing By

PostPosted: Fri Nov 22, 2019 10:37 pm
by Narayan
That has ow brought me up-to-date with my subscription. Up until now I have been receiving 2 issues every 4 weeks. That will now increase to 5 issues every 5 weeks.

So I thought now would be a good time for a group photo. This is the work completed over the first 14 issues.


Graham

Re: Red 5 Standing By

PostPosted: Mon Dec 02, 2019 7:22 pm
by steve131
Great work :clap: watched Star Wars at the weekend and could see all these details ,enjoying this.

Re: Red 5 Standing By

PostPosted: Wed Jan 22, 2020 2:35 pm
by Narayan
Stage 15 - Upper Starboard Engine


This stage is all about the pipework. Which is reasonably straightforward.






All the pipework details are fitted in to small holes. This was mostly enough but I had to use a tiny bit of glue to keep a couple of them from slipping out.





Graham

Re: Red 5 Standing By

PostPosted: Wed Jan 22, 2020 2:58 pm
by Narayan
Stage 16 - Upper Starboard Engine

Continuing with the upper starboard engine.


Firstly this trailing edge support was put together and attached to the starboard engine mount. For some reason I didn't take a picture showing where it fit.



Next, the internal bulkhead which was fitted to the power input unit from the previous issue.



More pieces of pipework were added to the power input unit. The instructions label these incorrectly but I was able to work out where they go. I also found a note about the correct order. Typically this was after I had put them on.



The power converter is pressed together and added to the power input unit.



This is all then added to the starboard wing and closed up.



Graham

Re: Red 5 Standing By

PostPosted: Wed Jan 22, 2020 6:25 pm
by Samets
Great job!

Re: Red 5 Standing By

PostPosted: Wed Jan 22, 2020 8:36 pm
by casper
Looks impressive. Great photos
casp
